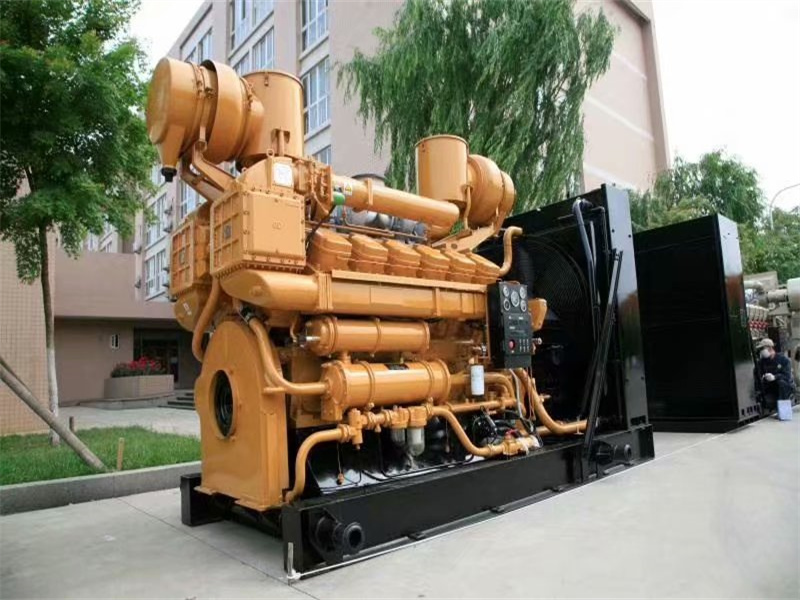

Дизельный буровой двигатель PZ12V190B-3 используемый в Украине, самостоятельная сборка

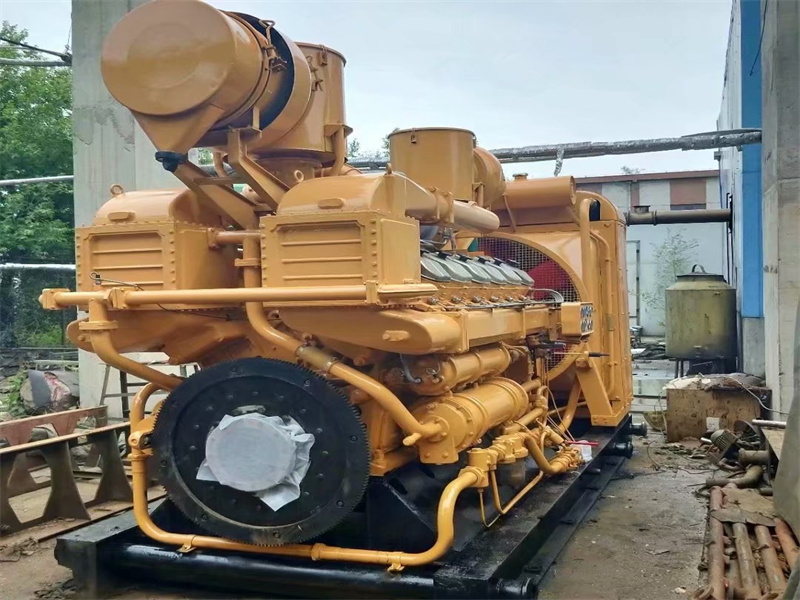

Jichai PZ12V190B-3 diesel engine parameters and quotations

. 型号 Model	PZ12V190B-3
额定功率 Rated power	735kW
额定转速 Rated speed	1300 RPM
缸数及排列 Number and layout of cylinders:	12-V
型式 Type:	四冲程，水冷，增压后中冷 Four stroke, Water cooled, Turbocharged and after cooler
燃料 Fuel	轻柴油 Light diesel oil
缸径×行程 Bore×Stoke:	190×210 mm
总排量 Total displancement	75.45L
压缩比 Compression ratio	14:1
燃油耗 Fuel consumption	≤ 209g/kWh
机油耗 Oil consumption	≤ 1.6g/kWh
低转速 Lowest speed	600 rpm
排温 Exhaust temperature	<600oC
排气标准 Exhaust standard	Accord with JB8891-1999 standard
噪音 Noise	<120dBA
转向 Direction of rotation	逆时针
启动方式 Starting method	气马达、电马达 Air motor,electric motor
润滑方式	压力和飞溅润滑
转速调整率 Stabilized speed regulation	5%(Hydraulic governor),0~5% adjustable (electronic governor)
净重 Net mass	8200kg
尺寸 Dimension (mm)	4301x1980x2678

II. Scope of supply:

Diesel engine, common chassis, vertical radiator, pre-supply pump, air motor, instrument panel, random accessories,

random tools, instruction manual, certificate of conformity.

IV. Delivery period:

Two months after the contract comes into effect or by mutual agreement.
