Генератор природного газа Shengdong 500 кВт T12V190 НЕФТЯНОЕ МЕСТОРОЖДЕНИЕ SHENGLI
Engine model: T12V190ZL-2
Type: 4-way, spark plug, water-cooled. Turbocharged cooling. The number of cylinders is 12.
Cylinder location: V, angle 60.
The cylinder diameter is 190 mm.
Piston stroke:210 mm.
Performance 71.45
Rated speed: 1000 rpm.
Oil consumption <0.8/kwh
Gas-thermal power:10 MJ/kWh.
Exhaust temperature <550 C.
Outlet water temperature: <85 C.
Oil pressure in the main oil line:400-800 kPa.
Turbocharger H145 oil pressure: 200-400 kPa.
Cooling method: forced circulation of water. cooling, cooling of the fan radiator.
Lubrication method: combined pressure and spray lubrication.
Number of cylinders: exhaust end 1-2-3-4-5-6-7-8-9-10-11-12.
Ignition method: spark plugs.
Starting mode: 24DC alternator.
Crankshaft rotation: counterclockwise.

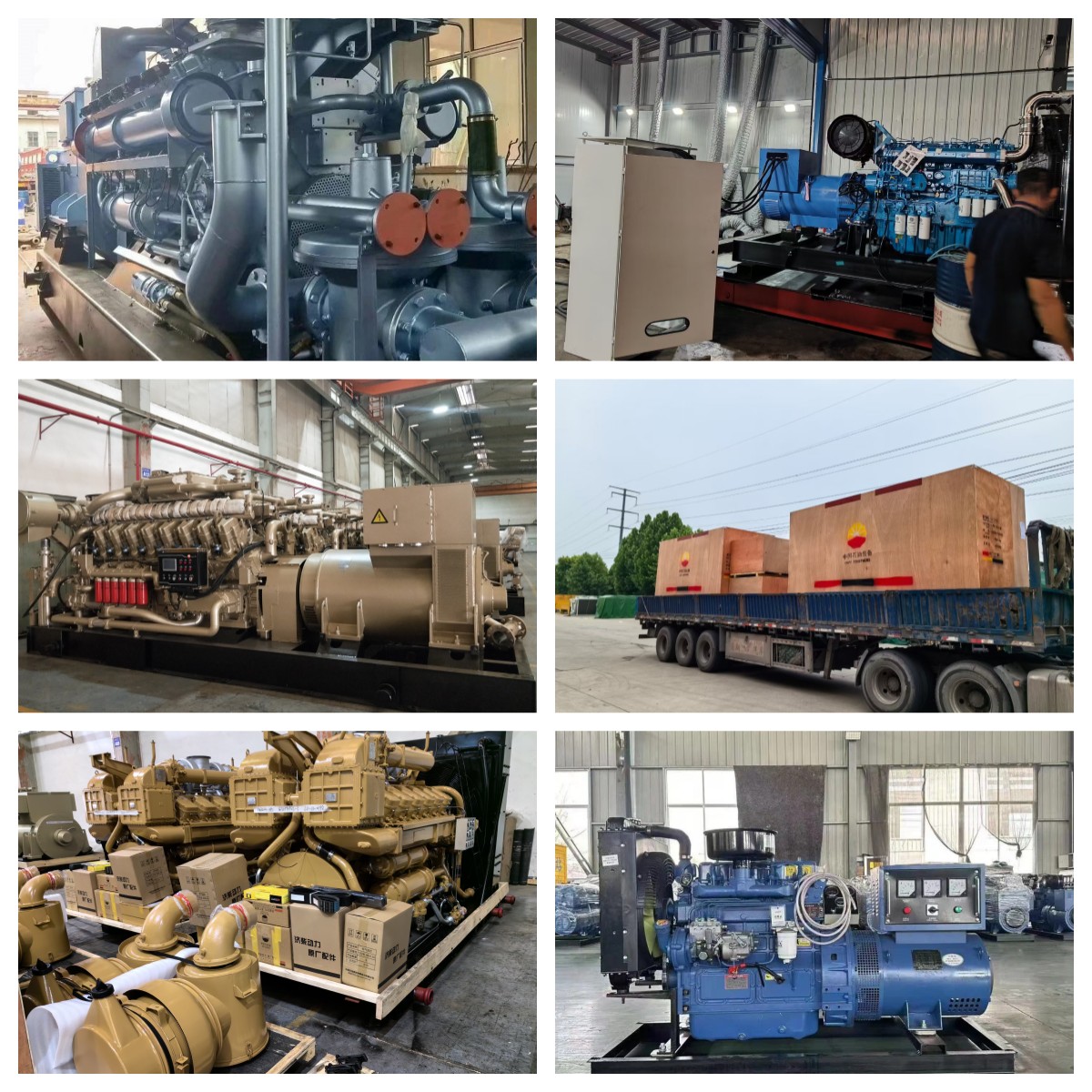

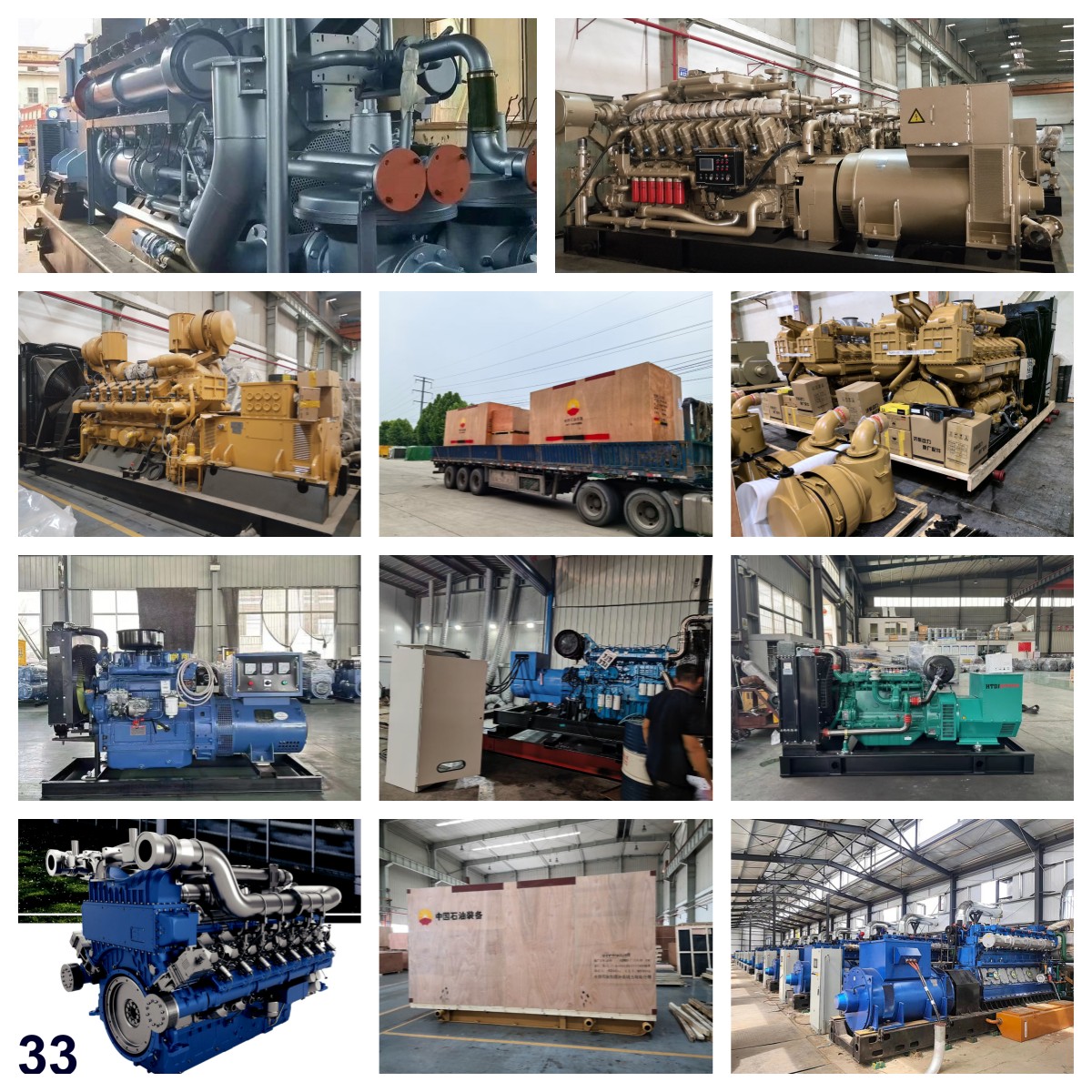

DELIVERY PICTURES:
