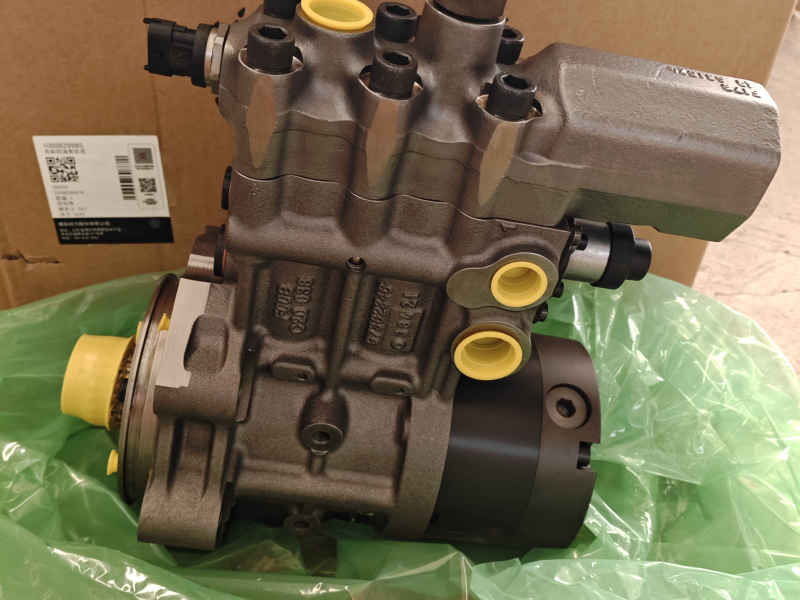

1010934956 Топливный насос Common Rail в сборе для дизельного двигателя Weichai Baudouin 16M33
The 16M33 is the next generation of the high-end engine M33 platform; it covers 1194-1866kW and meets China's non-road stage 3 emission requirements.
| Maximum Power | 1866 kW |
| Minimum Power | 1194 kW |
| Maximum Torque / Speed | 12500/1400 N·m / r/min |
Emission Standards
| Emissions | China non-road Stage Ⅲ |
General
| Series | 16M33 |
| Fuel | Diesel |
| Type | V-type 16-cylinder, four-stroke engine |
| Cylinder Number | 16 |
| Valve Number | 4 |
| Bore | 150 mm |
| Stroke | 185 mm |
| Displacement | 52.3 L |
| Aspiration | Turbocharged and intercooled |
| Compression Ratio | 15:1 |
| Combustion System | Electronically controlled high pressure common rail |
Engine Dimensions (Approximate. Final dimensions dependent on selected options)
| Length | 2939 mm |
| Width | 1740 mm |
| Height | 2025 mm |
| Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 5125 kg |
| Model | PrimePower （kW） | Speed （rpm） | Application | Speed Regulation Mode | Emission | Standby Power （kW） |
|---|---|---|---|---|---|---|
| 16M33G1625E304 | 1194/1900 | 1900 | Industrial power | ECU | China non-road Stage Ⅲ | |
| 16M33G2000E304 | 1492/1900 | 1900 | Industrial power | ECU | China non-road Stage Ⅲ | |
| 16M33G2335E304 | 1715/1900 | 1900 | Industrial power | ECU | China non-road Stage Ⅲ | |
| 16M33G2540E304 | 1866/1900 | 1900 | Industrial power | ECU | China non-road Stage Ⅲ |
