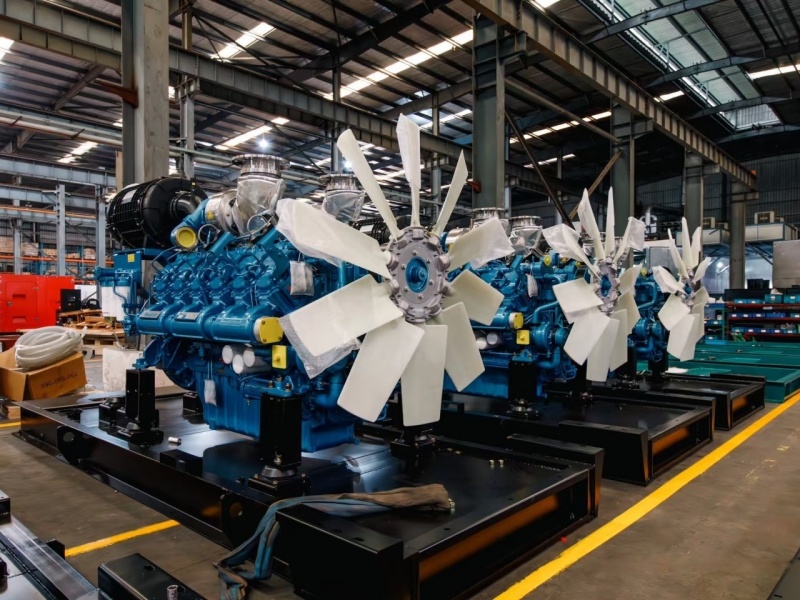

Baudouin 6M16G220/5 Diesel Engine Weichai Power
Introduction
Looking for Baudouin 6M16G220/5 diesel engine manufacturers? Hongfanpower is professional in providing Weichai Baudouin engine and engine spare parts, contact us for more information: Tel: +8618766952912 Email:[email protected] .
Technical Specifications
| Parameter | Specification |
|---|---|
| Engine Model | 6M16G220/5 |
| Number of Cylinders | 6 (Inline) |
| Bore × Stroke | 126 mm × 130 mm |
| Displacement | 9.726 liters |
| Rated Speed | 1500 RPM |
| Prime Power (PRP) | 182 kW |
| Standby Power (ESP) | 200 kW |
| Dry Weight | 1050 kg |
| Wet Weight (incl. oil & coolant) | 1123 kg |
Fuel Consumption
The fuel efficiency of the Baudouin 6M16G220/5 varies based on engine load:
At 1500 RPM (Prime Power):
50% Load: 21.9 L/h
75% Load: 31.6 L/h
100% Load: 42.1 L/h
At Standby Power:
100% Load: 46.3 L/h
Key Features
Robust Cylinder Design: Independent cast iron cylinder heads and replaceable dry cylinder liners enhance durability and ease of maintenance.
Efficient Fuel System: Equipped with P-type fuel injection pump and high-pressure injectors, ensuring optimal combustion efficiency.
Optimized Turbocharging: Centrally positioned turbocharger with low-mounted air intake, making it ideal for generator applications.
