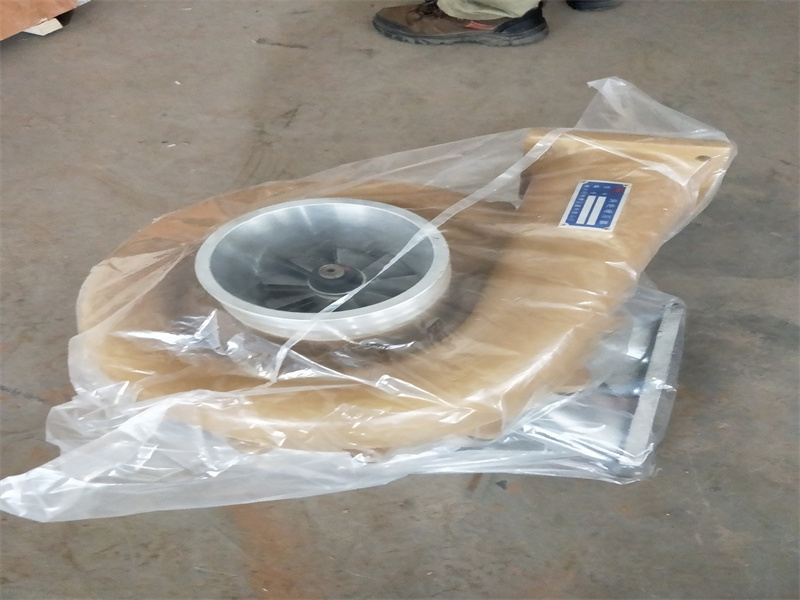

2012A.26.00A Turbocharger Assembly G12V190pzl-3 Jinan Brand Diesel Engine
1. G12V190PZL Engine Main Parameters
| No. | Name | Rated Power (kW) | Rated Speed (r/min) | Overall Dimensions (mm) | Total Weight (kg) |
|---|---|---|---|---|---|
| 1 | G12V190PZL1 | 1000 | 1500 | 4301 × 1980 × 2678 | 8100 |
2. Engine Description
Type: Four-stroke, water-cooled, turbocharged and aftercooled, direct injection
Number and Layout of Cylinders: 12 cylinders, V-type, 60°
3. Technical Parameters
| Parameter | Value |
|---|---|
| Bore (mm) | 190 |
| Stroke (mm) | 210 |
| Total Displacement (L) | 71.45 |
| Compression Ratio | 14:1 |
| Exhaust Gas Temperature (°C) | ≤ 600 |
| Cooling Water Temperature (°C) | ≤ 90 |
| Sump Oil Temperature (°C) | ≤ 95 |
| Speed Regulation Stability (%) | ≤ 8 |
| Cooling Method | Water cooling |
| Lubrication Method | Pressure and splash lubrication |
| Starting Method | Air motor |
4. Supply Scope
Diesel engine
Radiator
Special spare parts
Special tools
Exhaust pipe and muffler (optional, not standard supply; price: 15,000 per set)
Chinese and English operation manual
Chinese and English packing list, product test certificate, quality certificate, and other accompanying documents

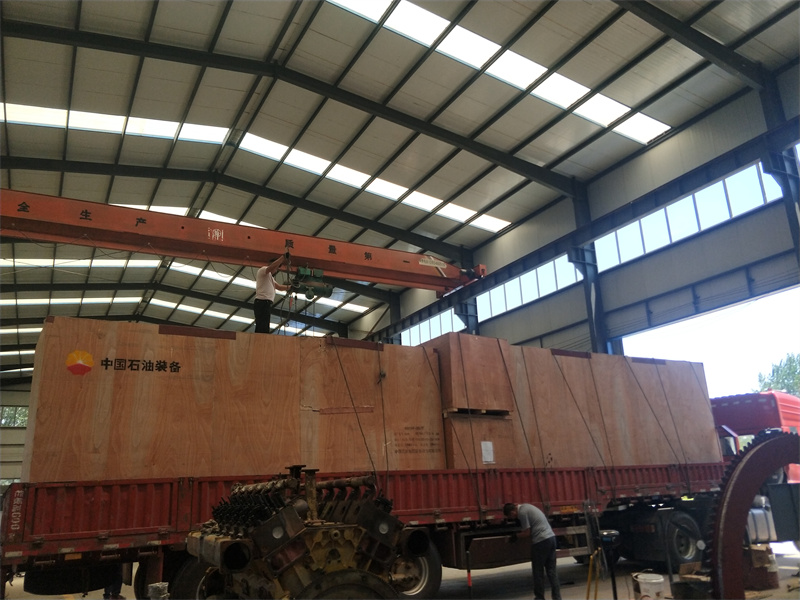

Standard export wooden box packaging
