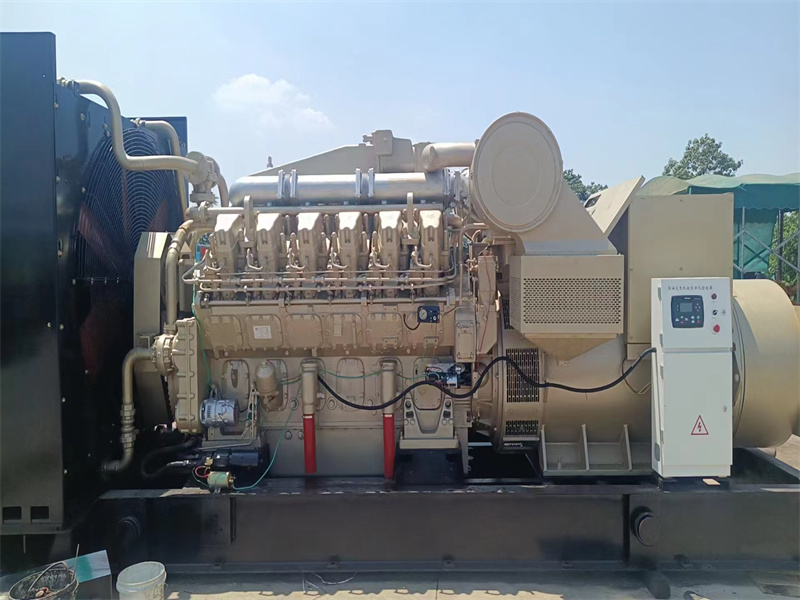

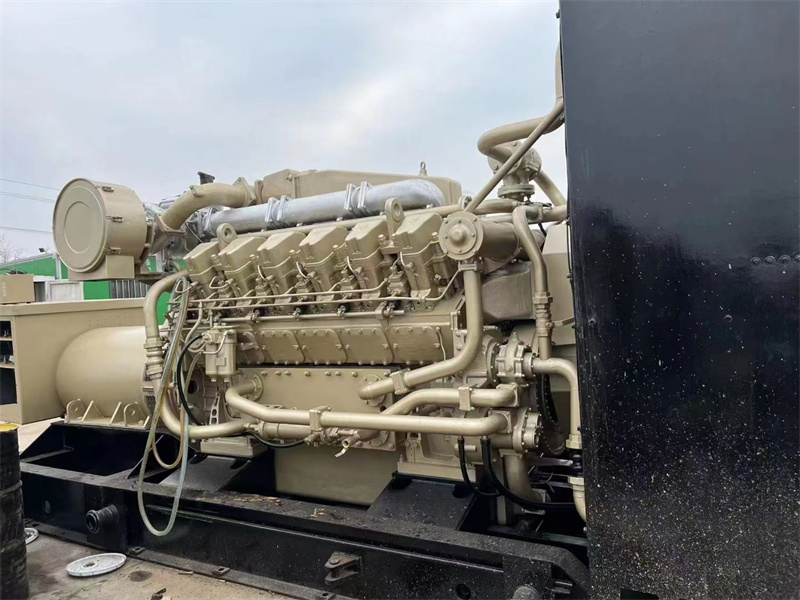

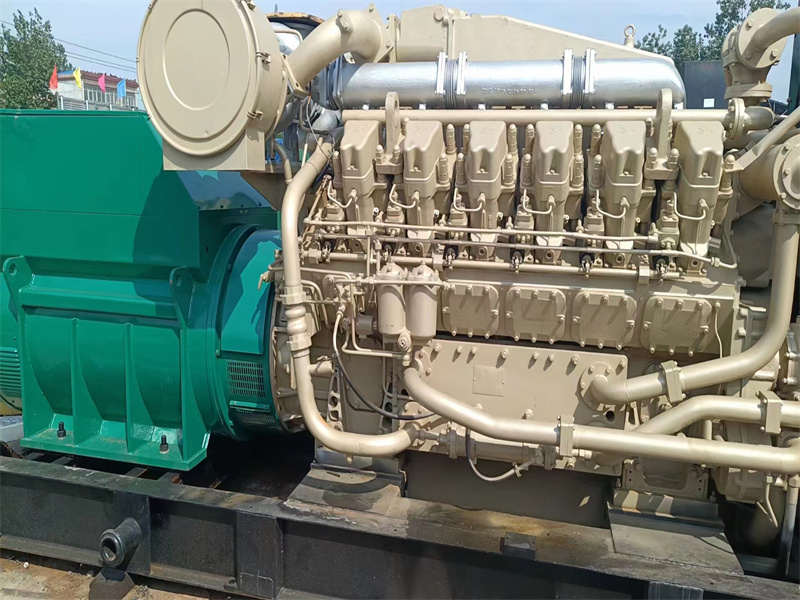

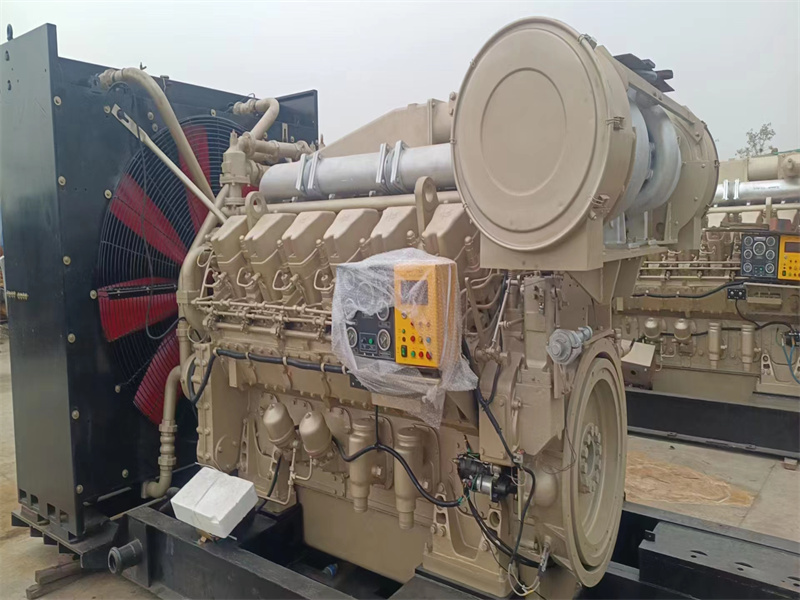

Engine Model: A12V190PZL Diesel Engine – 1200 kW

The A12V190PZL diesel engine is a powerful, high-performance engine designed for various industrial applications, providing 1200 kW of reliable power. With a V12 cylinder configuration at a 60° angle, it features a four-stroke, water-cooled system with a turbocharged intercooler and direct injection combustion chamber for superior efficiency and performance.

Key Features:

• Cylinder Configuration: 12 cylinders, V-type, 60° angle

• Displacement: 73.15 L

• Compression Ratio: 14.5:1

• Rated Speed: 1500 RPM

• Fuel Consumption: ≤205 g/kWh

• Oil Consumption: ≤1 g/kWh

• Exhaust Temperature (Pre-turbo): ≤650°C

• Cooling Water Outlet Temperature: ≤90°C

• Stability of Speed Adjustment: ≤5%

Performance Specifications:

• Continuous Power: 1080 kW

• Piston Stroke: 215 mm

• Piston Diameter: 190 mm

• Max Pressure: 1.312 MPa

• Minimum Stable Idle Speed: 600 RPM

Startup & Lubrication:

• Startup Method: Electric starter

• Lubrication: Pressure and splash lubrication

Dimensions & Weight:

• Dimensions: 3980 x 2250 x 2739 mm

• Weight: 11,000 kg

Supply Scope:

• Diesel Engine, Radiator, Special Parts, Special Tools, Exhaust Pipe, Muffler (Non-standard, optional)

• Chinese and Russian Packing List, Product Test Certificate, Quality Certificate, and more

• Standard Export Wooden Box Packaging

Delivery & Warranty:

• Delivery Time: 50 days after contract validation and receipt of advance payment

• Warranty: 15 months from delivery date or 1500 operational hours (whichever comes first)

Payment Terms:

• 40% Advance Payment: Within 7 days after signing the contract and receiving the invoice

• 60% Balance: Bank transfer within 15 days upon readiness for shipment

This high-performance engine is perfect for industrial power generation, ensuring robust performance and long-lasting reliability across various heavy-duty applications.
