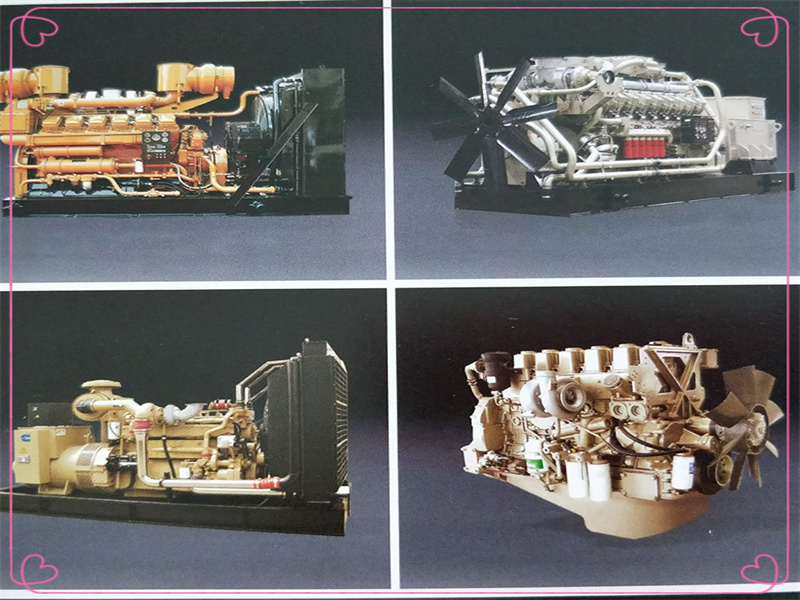

Drilling Engine Co1300f-3/25 engine model: Bl12V190-3 converter:Yotfj875-25flash
Product Information: B3000 Diesel Engine
Place of Origin: Shandong, China (Mainland)
Fuel: Diesel
Cooling Style: Water cooling / Inlet air intercooling
Starting Method: Air / Electric motor starting
Port: Qingdao
Usage: Oil drilling rigs / Small and medium auxiliary power stations / Ships
Model Number: B3000 Diesel Engine
Cylinder Configuration: 12-cylinder, V-shape, 60° angle
Stroke: 4-Stroke
Brand Name: Ji Chai
Payment Terms: L/C, T/T
Supply Ability: 400 sets per month
Specifications
B3000 (900~1360kW) Diesel Engine
Compact structure, easy maintenance
Rugged, powerful, and durable
Improved reliability and better fuel economy
Applications
The B3000 Diesel Engine is designed for use in:
Oil drilling rigs
Small and medium auxiliary power stations
Ships
Specification of B3000 Diesel Engine:
| series 3000 long stroke diesel engines | |||||||
| Model | Rated Power(KW/hp) | Rated Speed(r/min) | Specific fuel consumption(g/kw.h) | Specific oil consumption(g/kw.h) | Overall Dimension L*B*H(mm) | Net weigh(KG) | |
| L12V190ZL-1 | 1200/1200 | 1080/1200 | ≤202 | ≤1.0 | 2950*1980*2312 | 9300 | |
| L12V190PZL-1 | 1200/1200 | 1080/1200 | ≤202 | ≤1.0 | 3980*2250*2850 | 11000 | |
| L12V190ZL-2 | 1000/1000 | 900/1000 | ≤202 | ≤1.0 | 2950*1980*2312 | 9300 | |
| L12V190PZL-2 | 1000/1000 | 900/1000 | ≤202 | ≤1.0 | 3980*2250*2850 | 11000 | |
| L12V190ZL-3 | 1300/1300 | 1170/1300 | ≤202 | ≤1.0 | 2950*1980*2312 | 9300 | |
| L12V190PZL-3 | 1300/1300 | 1170/1300 | ≤202 | ≤1.0 | 3980*2250*2850 | 11000 | |
| Model of coupling sets | Power(KW)/Speed(r/min) | Model of diesel engine | Model of Coupling | Reduction ration | Overall Dimension L*B*H(mm) | Centre height(mm ) | |
| CO1300F-3/25 | 1300/1300 | L12V190PZL-3 | YOTFJ875-25FLsh | 2.5 | 6410*2335*2740 | 1355 | |
Exhaust pipe 3012CT.09.60.01exhaust pipe 3012CT.09.70.01exhaust pipe 3012CT.09.30.01exhaust pipe 3012CT.09.20.01\ 601.03.13 copper washer Q/JC14009 18WASHER 3012.09.05A 601.03.10.02B CYLINDER HEAD SEAL RING 601.03.09ANum GB6175 M16washer Q/JC14033 M16O seal ring 601.03.10.12O SEAL RING 601.03.10.13O SEAL RING 50X5.3 GB3452.1 LUBRICATING PIPE FLANGE 601.20.03O SEAL RING 73X3.55 GB3452.1O SEAL RING 77.5X3.55 GB3452.1O SEAL RING 45X3.5 Q/JC12003O SEAL RING 35.5X2.65 GB3452.1OSEAL RING 38.7X3.55 GB3452.1 O SEAL RING 30X3.1 Q/JC12003WATER PUMP B3012H.22.00 FB035055 GB13871-92 TTG-35 129.22.15 129.22.14 O SEAL RING 150X5.3 GB3452.1WATER PUMP ASS WASHER 12VB.22.23INJECTOR ASSEMBLY ADJUSTING WASHER 601.16.09INJECTOR ASSEMBLY ADJUSTING WASHER 601.16.11O SEAL RING 601.16.12 FUEL PUMP ASSEMBLY 4008LB.16.10INJECTOR ASSEMBLY ADJUSTING WASHER601.16.08 INJECTOR ASSEMBLY ADJUSTING WASHER 601.16.13A INJECTOR ASSEMBLY ADJUSTING WASHER 601.16.14AINJECTOR ASSEMBLY ADJUSTING WASHER 601.16.15AFUEL INJECTION PUMP ADJUSTING WASHER 601.16.16A FUEL LINE ASSEMBLY B3012.14.30.20A HAND PRIMING OIL PUMP ASSEMBLY 3008.29R.00COOLING LINE SYSTEM B3012.24.50EXHAUST LINE ASSEMBLY STUD 3012.09.11EXHAUST LINE ASSEMBLY STUD3012.09.06
Z12VB.01.00 CYLINDER BLOCK ASSEMBLY
12VB.02.00 CRANKSHAFT ASSEMBLY
12VB.03.00B CYLINDER HEAD ASSEMBLY
12VB.04.00B OIL SUMP ASSEMBLY
Z12VB.05.00 PISTON AND CONNECTING ROD ASSEMBLY
Z12VB.06.00 CAMSHAFT AND GEAR TRAIN ASSEMBLY
12VB.07.00 TORISONAL VIBRATION DAMPER ASSEMBLY
Z12VB.08.00B INTAKE MANIFOLD ASSEMBLY
Z12VB.09.00B EXHAUST MANIFOLD ASSEMBLY
12VB.10.00 FUEL FILTER ASSEMBLY
12VB.11.00 ROTOR FUEL FEED PUMP ASSEMBLY
Z12V.12.00 INJECTION PUMP ASSEMBLY
Z12V.13.00 MECHANICAL GOVERNOR ASSMBLY
12VB.14.00A FUEL LINE
12VB.15.00 FUEL INJECTION PUMP TRANSMISSION
12VB.16.00E INJECTOR ASSEMBLY
12V.17.00C OIL PUMP ASSEMBLY
12VB.18.00B OIL FILTER ASSEMBLY
12VB.19.00 CENTRIFUGAL FILTER ASSEMBLY
Z12VB.22.00B LUBRICATING PIPING
12VB.21.00 OIL COOLER ASSEMBLY
12VB.22.00B WATER PUMP ASSEMBLY
12V.27.00 AFTER-COOLER ASSEMBLY
12VB.32.00D INSTRUMENT PANEL ASSEMBLY
12VB.28.00 EXPLOSION-PROOF DEVICE
12V.29.00 HAND PRIMING PUMP ASSEMBLY
12V.33.00B TACHOMETER PANEL ASSEMBLY
12VB.34.00A LOW-OIL PRESSURE SHUT DOWN DEVICE
12VB.35.00A CONTROLLING DEVICE
12VB.36M.00 AIR FILTER ASSEMBLY
12VB.38.00 RADIATOR ASSEMBLY
12VB.39.00 FAN ASSEMBLY
PZ12VB.40.00 BASE FRAME ASSEMBLY
12VB.44.00 COUPLING CLUTCH ASSEMBLY
12VB.45.00A DESERTS AIR FILTER BRACKET ASSEMBLY
12VB.46.00FB AIR STARTING SYSTEM
12VB.47.00A RADIATOR BRACKET ASSEMBLY
12VB.54.00C PRE-SUPPLYING OIL PUMP ASSEMBLY
12VB.55P.00 COUPLING CLUTCH ASSEMBLY
20GJ.00EA RADIAL FLOW TURBOCHARGER ASSEMBLY
12VB.06.47
6. 12VB.06.15B
12VB.06.10.01A
12VB.05.10.08A
12VB36 40/50
(0.00) 12VB.05.10.04/05
(-0.25) 12VB.01.34
(0.00) 12VB.01.23A/24A
(0.00) 12VB.05.10.04/05
(0.00) 12VB.01.21A/22A
(0.00) 12VB.01.23A/24A
(0.00) 12VB.05.10.04/05
1 12VB.01.21A/22AX1
12VB.01.23A/24A(X1)
(0.00) 12VB.01.21A/22A
(0.00) 12VB.01.23A/24A
(0.00) 12VB.05.10.04/05
(0.00) 12VB.01.21A/22A
(0.00) 12VB.01.23A/24A
(0.00) 12VB.05.10.04/05
(x1 12VB.01.23A/24A
(x3 12VB.01.23A/24A
(x1 12VB.01.23A/24A
x3 12VB.01.23A/24A
12VB.03.10
12VB.03.10.01/PJ
12VB.03.10.03/PJ
12VB.03.10.05
12VB.03.10.04
12VB.03.03B
12VB.03.03B
12VB.03.23
12VB.03.44
12V.03.45
12VB.03.47
12VB.10.00
12VB.10.01
12V.10.30.10
12VB.11.00
12VB.16.00
12VB.16.10
12VB.18.00B
8V.18.00B
511.18.00
12VB.18.02B
12VB.18.01A
16Q/JC14028-86
12V.19.06B
12V.19.05B
12V.19.12B
12V.19.08C
12VB.20.30
12VB.22.00B
12VB.22.03B
12VB.22.02B
12VB.22.04
12VB.22.07
12VB.22.00B
129.22.
12VB.34.00A
129.34.00A
12VB.35.00A
2012.35.00A
PZ12VB.40.20.10A
12VB.46.300
701.46F.50
12VB.54.00C
2012.54.00C
12VB.54.20B
