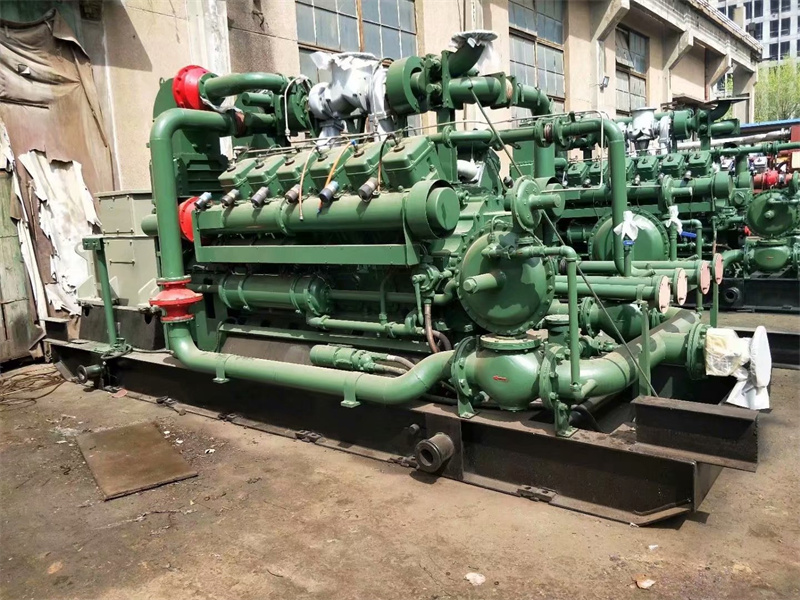

Jichai 300kw 375kVA Газовый генератор Природный
Основная информация.
Источник газа
Природный газ
Сертификация
CE, ISO
Мощность
50-200 кВт
Стандарт
Стандарт
Цвет генератора
По требованию заказчика
Радиатор двигателя
Большая площадь рассеивания тепла
Блок цилиндров двигателя
Без утечек
Коленчатый вал двигателя
Увеличивает интенсивность
Топливный насос двигателя
Без блока в инжекторе
Транспортная упаковка
Фанерный ящик
Спецификация
компактный внешний вид
Торговая марка
huayu
Происхождение
Китай
Код ТН ВЭД
8502200000
Производственная мощность
5000 шт./год
Product Description
200kw 250kva natural gas generator with competitive price:
| MODEL | HY-10Q | HY-15Q | HY-20Q | HY-25Q | HY-30Q | HY-40Q | |||
| GENERATOR | GEN-SET POWER | STAND BY | KVA | 13.75 | 20.63 | 27.5 | 34.38 | 41.25 | 55 |
| KW | 11 | 16.5 | 22 | 27.5 | 33 | 44 | |||
PRIME | KVA | 12.5 | 18.75 | 25 | 31.25 | 37.5 | 50 | ||
| KW | 10 | 15 | 20 | 25 | 30 | 40 | |||
| OPEN DIMENSION (W x L x H) (mm) | 1950 x 850 x 1380 | 1980 x 850 x 1400 | 2000 x 850 x 1410 | 2100 x 950 x 1430 | 2100 x 950 x 1450 | 2300 x 1000 x 1500 | |||
| OPEN WEIGHT (kg) | 630 | 650 | 670 | 720 | 750 | 950 | |||
| ENGINE | BRAND | HUAYU | HUAYU | HUAYU | HUAYU | HUAYU | HUAYU | ||
| TYPE | HY35D1 | HY35D2 | HY35D3 | HY43D1 | HY43D2 | HY52D1 | |||
POWER | STAND BY | KW | 16.5 | 22 | 27.5 | 33 | 38.5 | 50.6 | |
| PRIME | KW | 15 | 20 | 25 | 30 | 35 | 46 | ||
| SPEED (rpm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |||
| CYCLE | 4 | 4 | 4 | 4 | 4 | 4 | |||
| DISPLACEMENT (liter) | 3.5 | 3.5 | 3.5 | 4.3 | 4.3 | 5.2 | |||
| NUMBER OF CYLINDERS | 4 | 4 | 4 | 4 | 4 | 6 | |||
| BORE AND STROKE (mm x mm) | 100 x 125 | 100 x 125 | 100 x 125 | 105 x 125 | 105 x 125 | 105x 125 | |||
| GOVERNOR TYPE | ELECTRONIC | ELECTRONIC | ELECTRONIC | ELECTRONIC | ELECTRONIC | ELECTRONIC | |||
| ASPIRATION | TURBO | TURBO | TURBO | TURBO | TURBO | TURBO | |||
| COMBUSTION SYSTEM | DIRECT INJECTION | DIRECT INJECTION | DIRECT INJECTION | DIRECT INJECTION | DIRECT INJECTION | DIRECT INJECTION | |||
| COOLING SYSTEM | WATER | WATER | WATER | WATER | WATER | WATER | |||
| GAS CONSUMPTION (m3/h) | %100 OF PRIME POWER | 3.3 | 4.9 | 6.6 | 8.25 | 9.9 | 13.2 | ||
| %75 OF PRIME POWER | 2.7 | 4.1 | 5.5 | 6.8 | 8.2 | 10.9 | |||
| %50 OF PRIME POWER | 1.8 | 2.8 | 3.7 | 4.6 | 5.5 | 7.3 | |||
| MODEL | HY-50Q | HY-80Q | HY-100Q | HY-120Q | HY-150Q | HY-200Q | |||
| GENERATOR | GEN-SET POWER | STAND BY | KVA | 68.75 | 110 | 137.5 | 165 | 206.25 | 275 |
| KW | 55 | 88 | 110 | 132 | 165 | 220 | |||
PRIME | KVA | 62.5 | 100 | 125 | 150 | 187.5 | 250 | ||
| KW | 50 | 80 | 100 | 120 | 150 | 200 | |||
| OPEN DIMENSION (W x L x H) (mm) | 2300 x 1000 x 1520 | 2750 x 1000 x 1680 | 2800 x 1100 x 1800 | 2900 x 1100 x 1800 | 3000 x 1100 x 1800 | 3050 x 1100 x 180 | |||
| OPEN WEIGHT (kg) | 970 | 1900 | 2100 | 2150 | 2210 | 2250 | |||
| ENGINE | BRAND | HUAYU | HUAYU | HUAYU | HUAYU | HUAYU | HUAYU | ||
| TYPE | HY52D2 | HY98D1 | HY98D2 | HY116D1 | HY116D2 | HY116D3 | |||
POWER | STAND BY | KW | 63.8 | 99 | 132 | 154 | 187 | 253 | |
| PRIME | KW | 58 | 90 | 120 | 140 | 170 | 230 | ||
| SPEED (rpm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |||
| CYCLE | 4 | 4 | 4 | 4 | 4 | 4 | |||
| DISPLACEMENT (liter) | 6,4 | 7.1 | 9.8 | 11.6 | 11.6 | 11.6 | |||
| NUMBER OF CYLINDERS | 6 | 6 | 6 | 6 | 6 | 6 | |||
| BORE AND STROKE (mm x mm) | 105 x 125 | 105 x 135 | 126 x 130 | 126 x 155 | 126 x 155 | 126 x 155 | |||
| GOVERNOR TYPE | ELECTRONIC | ELECTRONIC | ELECTRONIC | ELECTRONIC | ELECTRONIC | ELECTRONIC | |||
| ASPIRATION | TURBO | TURBO | TURBO | TURBO | TURBO | TURBO | |||
| COMBUSTION SYSTEM | DIRECT INJECTION | DIRECT INJECTION | DIRECT INJECTION | DIRECT INJECTION | DIRECT INJECTION | DIRECT INJECTION | |||
| COOLING SYSTEM | WATER | WATER | WATER | WATER | WATER | WATER | |||
| GAS CONSUMPTION (m3/h) | %100 OF PRIME POWER | 17 | 26.4 | 34 | 39.6 | 49.6 | 66 | ||
| %75 OF PRIME POWER | 14 | 21.8 | 28 | 32.7 | 41 | 54.5 | |||
| %50 OF PRIME POWER | 9.4 | 14.6 | 19 | 22 | 27.6 | 36.6 | |||
