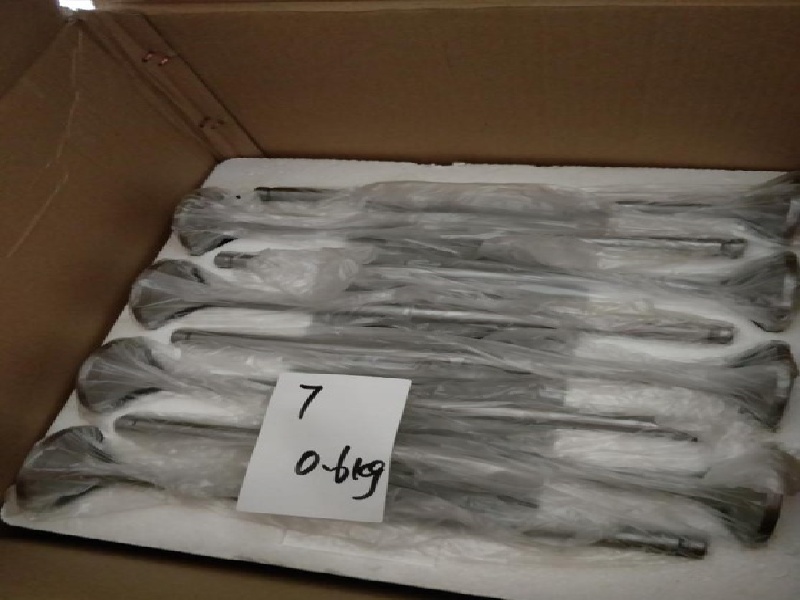

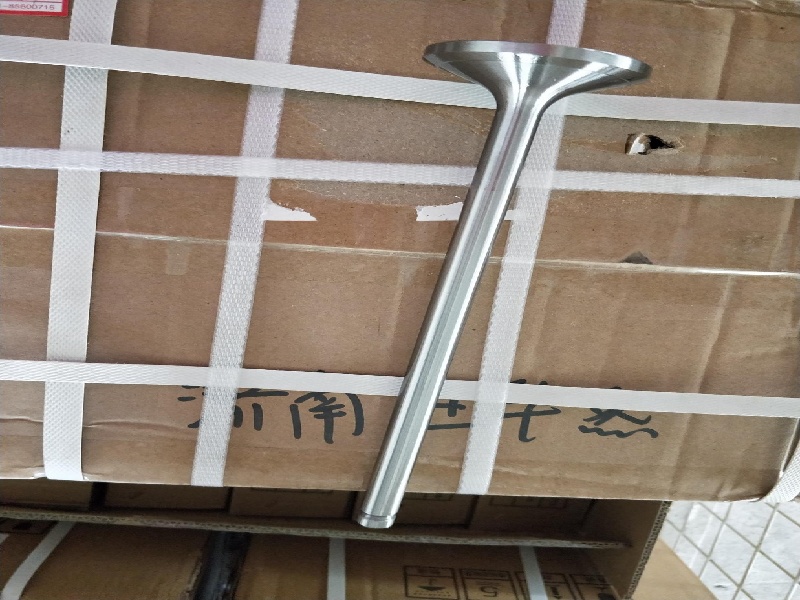

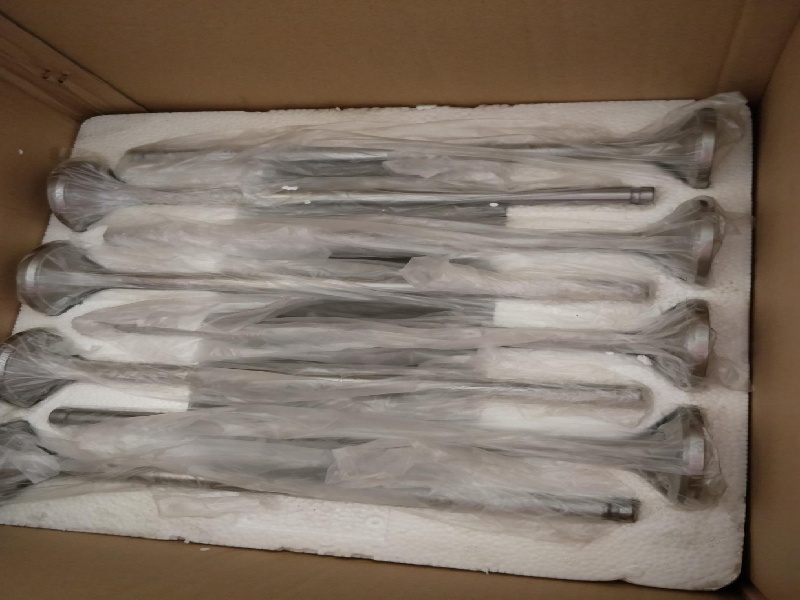

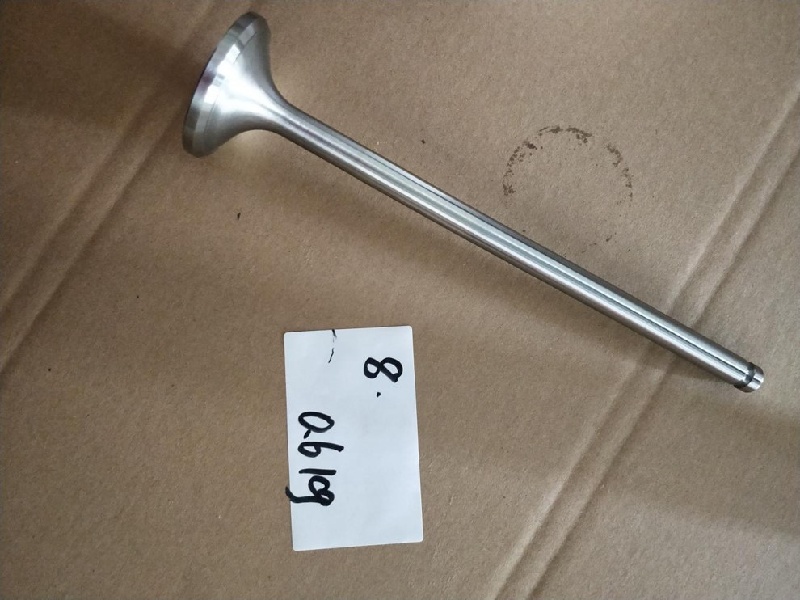

601.03.14A впускной клапан 601T.03.15 выпускной клапан газопоршневого генератора Jichai 1MW
ENGINE SPEC IFICATION V-16, 4-Stroke-Cycle-Engine (190 series)
Bore 190mm
Stroke 215mm
Displacement --97.53L
Aspiration T urbocharged-After cooled
Speed Control Electronic Speed governing
Rated Speed 1200rpm
Rated power 1150kW
INTRODUCTION

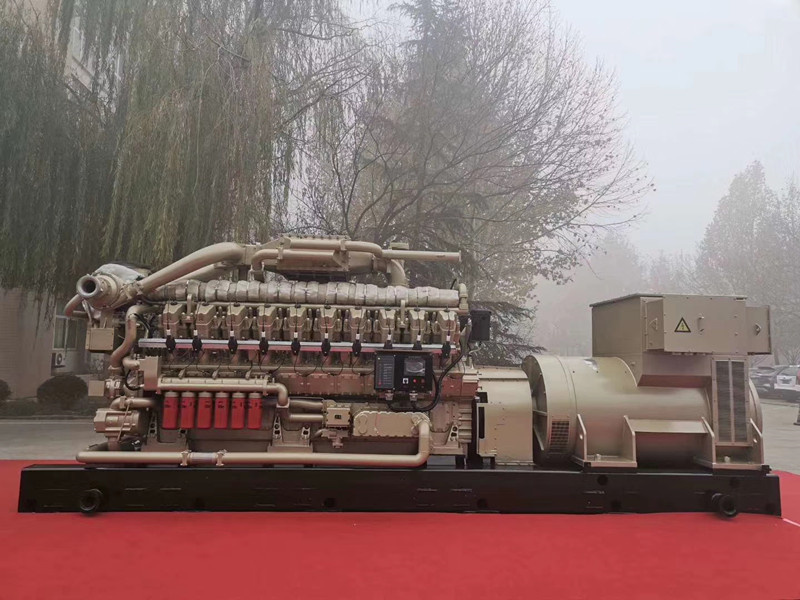

H16V190ZLT-2 outer mixing gas engine is developed by our company to meet the requirement of market. The whole engine is optimized by amending the shortages of the first gas engine generation. The power performance, fuel economy and reliability of this gas engine are improved a lot by adopting outer mixing mode, increasing compression ratio and boost ratio, enhancing swirl rat io, realizing lean -burnt by controlling air fuel ratio, using high-energy ignition, and etc.
This engine series is mainly used in generating by single engine or several engines forming a power station. It also can be used as power of compressor, oil t ransfer pump, water in jection pump, and etc.
MAIN FEATURES
Engine Design - Designed by AVL, Austria - Intellectual Property belong to JCPC - Triaxiality Finite Element Analysis - Longer Stroke, More displacement - Low Speed (1200RPM), More Reliable - Advanced World Standard Performance Generator - Brushless Excitation -AVR - Better Insulation and Protection Safety - Low Oil Pressure Auto Stop Protection - Over Speed Auto Stop Protection - Exp losion Proof - High Coolant Temperature Alarm - Low Coolant Level Alarm - High Oil Temperature Alarm - Complete Electrical Protection - Emergency Stop Device | Testing - Strict Inspection and Factory Test for Each Gen -set - Start Performance Test - Load Test - Synchronization Test - Safety System Test The Whole Equipment Supply - Standard Scope of Supply - Repairing Tools Easy Installation and Remove - All Equipment on Common Skid Three -Point Support -Simple Installation Work - High Strength Skid, for Hoisting and Removing. Technic al Support & Ser vices - Technical Support and Training Service - 24/7 Technical Service Tel Number - Rapid Spare Parts Supply - After Sales Service for Generator Set Lifetime |
Property Parameter Table
Model | 1000GF-T |
Engine type | H16V190ZLT-2 |
Alternator type | 1FC series（siemens technology） | |
Rated Power * kW | 1000 | |
Rated Speed rpm | 1200 | |
Rated Frequency Hz | 50 | |
Rated PF | 0.8 | |
Vo ltage Regulation | AVR | |
Weight kg | 19500 | |
Dimension mm | 6500×2312×2777 |
*Rating and fuel consumption based on ISO Standard conditions (Ambient temperature at 25 degree Centigrade, Atmospheric pressure at 100kPa and Relative humidity at 30%). Site rat ing and fuel consumption should amend according to relative standard (The table at right side for reference )
Main Specification of Engine
Model of engine | H16V190ZLT-2 |
Rated Power(kW) | 1150kW |
Rated Speed(r/ min) | 1200 |
No. and layout of cylinders | 16-cylinder，60°Vee |
Type | Four stroke, Water cooled, Direct in jection, Air-fuel ratio control, Spark plug ignition, Out mixing, Electrical control, Mixed after compressor, Turbocharged and after cooled. |
Heat consumption | ≤9500kJ/kW·h |
Specific oil consumption (g/kW.h) | ≤0.8 |
Bore(mm) | 190 |
Stroke (mm) | 215 |
Total displacement (L) | 97.53 |
Governor | Electronic Governor |
Exhaust temperature （before turbo） | ≤700℃ |
Starting mode | 24V DC electric starting motor |
Direction of rotation | Counter-clockwise(facing to flywheel) |
Lubrication method | Pressure and splash lubrication |
Hot water outlet temperature | <90℃ |
Mid-cooler inlet water temperature | <45℃ |
Oil temperature | <90℃ |
Stable regulating rate | 0～5 % adjustable |
Cooling method | Horizontal radiator |
Manufacturer | CNPC Jichai Power Co., Ltd |
Model of alternator | 1FC series（siemens technology） |
Rated power(kW) | 1000 |
Rated voltage(V) | 400 |
Coupling | Elastic |
Voltage regulator | 3 phase sensing with volts/Hz. |
Voltage regulation | Less than +/-0.5% in steady state and less than +/- 0.5% with 3% speed change. |
Rated frequency | 60Hz |
Power factor | COS￠=0.8 |
Wiring mode | Three-phase four-wire system（Y） |
Excitation mode | Brushless excitation |
Insulation class | F |
Running mode | Continuous |
Protective class | IP23 |
Rotating direction | Anticlockwise(Facing to input end) |
Natural Gas Engine Air inlet system Air Filter Air Cooler Bracket Control system Governor Control Panel Explosion Proof Safety Protection System Exhaust system Exhaust Gas Turbocharger Exhaust Manifold Corrugated Pipe Exhaust Pipe Exhaust Elbow Exhaust Silencer Cooling system Horizontal Radiator | Starting System DC Starting Motor Electric Starter 24 Volt Lubricating System Main Oil Pump Lube Oil Filter Lube Oil Cooler Lube Oil Centrifugal Filter Alternator Brushless Excitation Alternator AVR(Digital Mode) Spares Normal Repair Tools Special Spare Parts Technical Document Others Common Skid Elastic Coupling |
