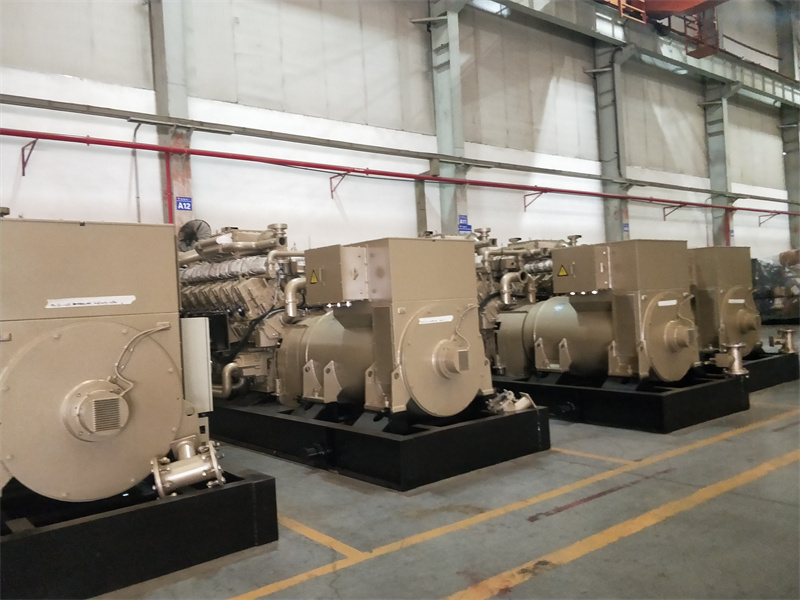

L20V190 2000KW natural gas generator set high efficiency

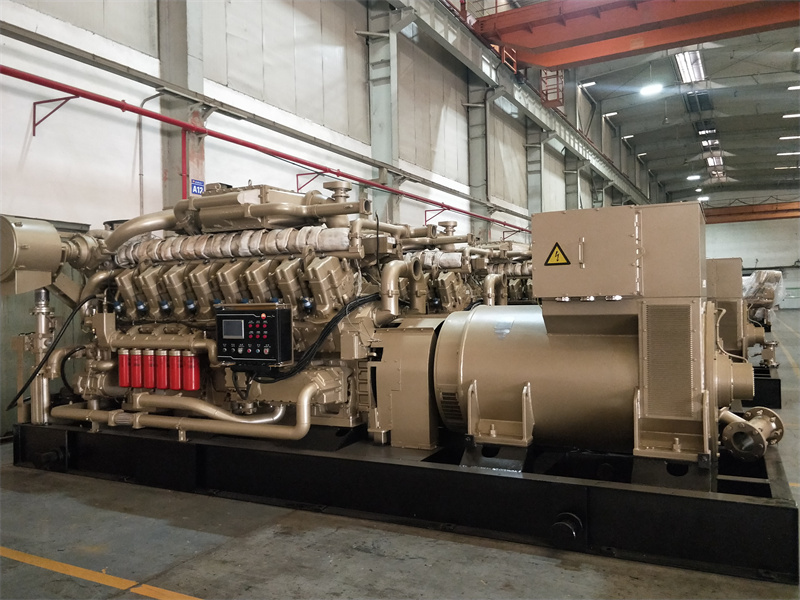

L20V190 Series Natural Gas Genset

The L20V190 series natural gas generator set is a newly developed product designed by Jichai Power or Jichai Huanneng to meet market demands. Drawing from advanced international high-tech achievements and successful experiences, it features a lean-burn system based on air-fuel ratio closed-loop control, an intelligent cooling control system, and an integrated control system. With a focus on enhancing overall reliability, functionality, and adaptability, this genset is the result of independent innovation.

Key advantages include compatibility with low-pressure gas, high level of automation, low heat consumption, excellent reliability, low emissions, and long service life. The main technical specifications meet internationally advanced standards.

Application Scenarios

The L20V190 series natural gas genset is a strong domestic alternative to imported products. It is widely used in stationary or mobile power stations, oilfield gas platforms, natural gas compressors, and other stationary mechanical power applications. It supports both grid-connected power generation and island mode operation such as in data centers.

Product Specifications

Genset Parameters

Model: 2000GF10-T

Rated Power: 2000 kW

Rated Voltage: 10,500 V

Frequency: 50 Hz

Dimensions (L×W×H): 9100 × 3886 × 2786 mm

Weight: 31,000 kg

Engine Parameters

Model: L20V190ZLT-2

Rated Power: 2100 kW

Rated Speed: 1000 rpm

Bore × Stroke: 190 × 255 mm

Number & Arrangement of Cylinders: 20 cylinders, V-type

Heat Consumption Rate: ≤9000 kJ/kW·h

Emission Level: NOx ≤ 469 mg/Nm³ @ 5% O₂
