Weichai Power Baudouin Diesel Generator Set – Technical Specifications

I. Technical Specifications

(1) Generator Set

• Model: 500GF

• Prime Power: 500 kW

• Standby Power: 633 kW

• Frequency: 50 Hz

• Rated Voltage: 400/230 V

• Speed: 1500 rpm

• Power Factor: cosφ = 0.8 (lagging)

• Fuel Consumption: 210 g/kW·h

• Rated Current: 990 A

• Phase / Wiring: Three-phase, four-wire

• Noise Level (LP7m): 105 dB

• Overall Dimensions (L×W×H): 3100 × 1300 × 1650 mm

• Weight: 3600 kg

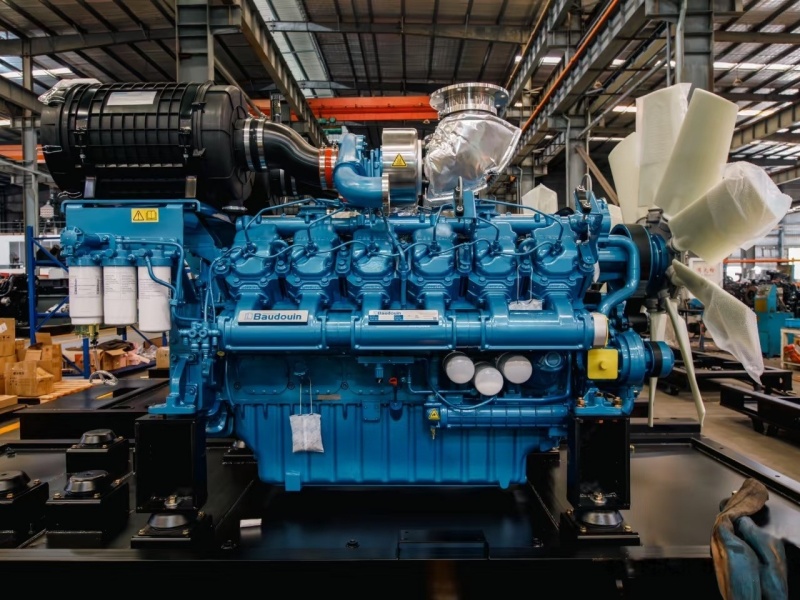

(2) Diesel Engine

• Brand: Baudouin

• Manufacturer: Baudouin (Weifang) Power Co., Ltd.

• Model: 6M33D633E200

• Cooling System: Closed-loop water cooling

• Starting Method: 24 V DC electric start

• Number of Cylinders: 6

• Displacement: 19.6 L

• Compression Ratio: 15:1

• Fuel Injection: Direct injection

• Air Intake System: Turbocharged and intercooled

• Cylinder Arrangement: In-line

• Intercooling Type: Water-to-air intercooler

• Fuel Type: Domestic 0# light diesel fuel

• Governor Type: Electronic governor

• Coolant Capacity: 41.63 L

• Oil Sump Capacity: 60.5 L

• Lubricating Oil Grade: WD/40

• Bore × Stroke: 150 × 185 mm

• Engine Dimensions (L×W×H): 2254 × 1138 × 1528 mm

• Net Weight: 2090 kg

(3) Alternator

• Place of Origin: Yangzhou

• Model: SF-500-4

• Winding Material: 100% copper

• Insulation Class: H

• Voltage Regulation: AVR

• Voltage Deviation: ≤ 4%

• Rated Voltage: 400/230 V

• Protection Class: IP23

• Frequency: 50 Hz

• Phase / Connection: Three-phase, four-wire, Y-connected

• Frequency Regulation (%):

• Steady-state: ≤ ±0.5%

• Transient: +10% / −7%

• Voltage Regulation (%):

• Steady-state: ≤ ±0.5%

• Transient: +20% / −15%

• Frequency Fluctuation Rate: ≤ ±0.5%

• Voltage Fluctuation Rate: ≤ ±0.5%

II. Configuration

a) Standard Configuration

• Industrial water-cooled diesel engine

• Single-bearing drip-proof alternator, IP22 protection, insulation class H

• Radiator suitable for 40°C ambient temperature, double-layer cooling

• Electric starting system

• Standard air filter

• Output circuit breaker

• Steel base frame with anti-vibration mounts

• Exhaust silencer

III. Optional Accessories (at Extra Cost)

• Battery float charger

• ATS (Automatic Transfer Switch) control panel

• Weatherproof generator set (canopy/enclosure)

• Silent generator set (canopy/enclosure)

• Generator control panel with self-protection and auto-start functions

• Generator control panel with “three-remote” functions (remote monitoring, remote control, remote communication)

• Mobile trailer-mounted power station

• Silent mobile power station (trailer-mounted)

• Engine oil heater, fuel heater, water jacket heater, anti-condensation heater

• Split-type daily fuel tank, integrated base-frame fuel tank
